EasyFit Coaxial Plug

  • EasyFit coaxial

Perfect cable preparation for a perfect fit

To prepare your coaxial cable for the EasyFit range, a unique stripping tool which strips the outer sheath to the core is supplied. With replaceable blade cartridges available for trade installers, cable preparation couldn’t be easier. No more folding back braid or trimming off foil. Just insert, twist and strip.

For the quickest Coaxial connection available

The EasyFit UHF coaxial connector employs a sprung, toothed clamp type insert that makes fitting to a coaxial cable both easier and quicker than the conventional Belling Lee connector. All the user has to do is insert the stripped cable and tighten the collar to secure. This revolutionises the way coaxial cable is terminated and improves performance across the 470-862MHz frequency range.




Insert, twist and strip.

  • Insert at least 25mm of coaxial cable into the stripping tool.
  • Press and hold down the button, rotating at least two full circles until all braid is cut.
  • Coaxial cable is ready for connection.

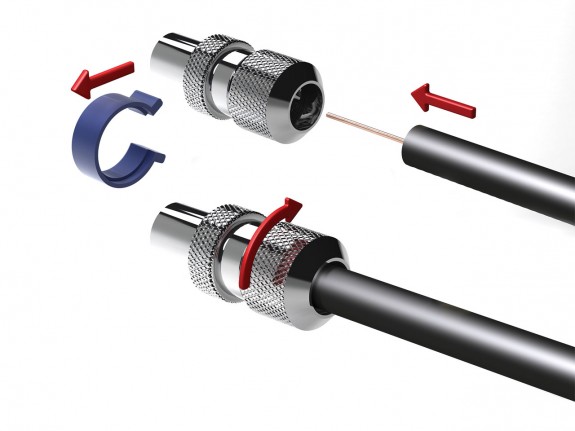

Tighten to secure

  • Remove blue safety clip and firmly insert the stripped cable into the coaxial plug.
  • Screw the locking base clockwise until tight. Trim any excess core from the end.
  • Ready to install.
